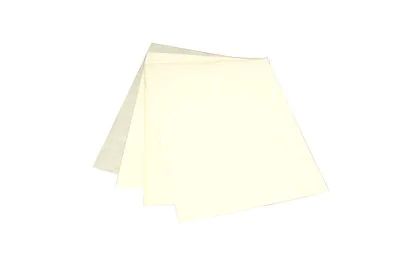

3M CeQUIN 510 Inorganic Insulating Paper Laminate is a three-ply composite of 3M TufQUIN Hybrid Insulating Paper bonded to both sides of CeQUIN 3000 Paper for use in high-temperature electrical applications. Qualified for use in electrical insulation systems up to Class 220 ® per UL 1446 and IEC Std. 60085; CSA Component Acceptance at 220°C. Applications include core wrap and barrier insulation in dry-type transformers. The combination of 3M TufQUIN Inorganic Hybrid Insulating Paper with CeQUIN paper provides maximum strength and cut-through resistance required to meet rigorous coil winding applications. CeQUIN 510 paper offers the high-performance capabilities of inorganic-based papers including excellent thermal and dielectric stability, high thermal conductivity, long-term voltage endurance, and low moisture absorption. CeQUIN 510 paper is compatible with commonly used impregnating varnishes and resins, and is easily impregnated, further enhancing thermal conductivity and coil bonding characteristics. 3M Innovative Paper Technologies UL Recognized Insulation Systems (File No. 65007) may be found on ULs Electrical Insulation Systems Database at http://www.ul.com/eis/ .
