Accuride International

C3507-18D

Reference # : 32C3507-18D

Product Description

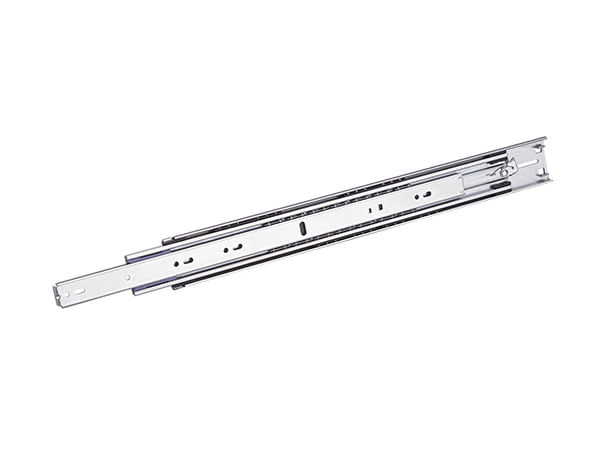

C3507-18D Slide - Designed for electronic enclosures with heavier chassis sized from 4U to 8U. Heavy-duty with lock-out feature. Lock-out holds chassis in open position. One-Motion Insertion. Simplifies reinsertion and installation of heavier loads. Guide pins provide stability for cable management attachment directly to slides. Rear bracket kit provides two inches [50.8 mm] of adjustment. Prop65 Warning: This product can expose you to chemicals including nickel, lead, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

Technical Specifications

PropertySpecification
RoHS Compliant
Yes
Disconnect Type
Pinch-Free Latch Disconnect
Extension
Over Travel Slides
Finish
Clear Zinc
Length (inch)
18
Load Rating (lbs)
200
Optional Kits
CC9. CC11
Over Travel Length (inch)
2
Over Travel Length (millimeter)
50.8
Side Space (inch)
0.5
Side Space (millimeter)
12.7
Tested Drawer Width (inch)
16
Tested Drawer Width (millimeter)
406
BHMA
No
Package Type
Polybag (Includes Mounting Screws)
Market
Industrial & Electromechanical

Documents & Media

Product Description

C3507-18D Slide - Designed for electronic enclosures with heavier chassis sized from 4U to 8U. Heavy-duty with lock-out feature. Lock-out holds chassis in open position. One-Motion Insertion. Simplifies reinsertion and installation of heavier loads. Guide pins provide stability for cable management attachment directly to slides. Rear bracket kit provides two inches [50.8 mm] of adjustment. Prop65 Warning: This product can expose you to chemicals including nickel, lead, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
