Bertech

KPT-1

Reference # : 899KPT-1

Product Description

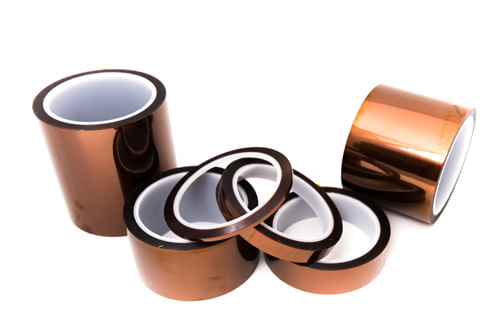

1 mil Kaptonsupreg;/sup Tapes are made from Kaptonsupreg;/sup HN film with silicone adhesive. They have been used in applications at temperatures as low as -269 degrees C (-452 degrees F) and as high as 260 degrees C (500 degrees F). DuPontsuptrade;/sup Kaptonsupreg;/sup polyimide films have set the industry standard for over 45 years in high performance, reliability and durability, with a unique combination of electrical, thermal, chemical and mechanical properties that withstand extreme temperature, vibration and other demanding environments. Kaptonsupreg;/sup polyimide films make innovative design solutions possible in a range of industries including, consumer electronics, solar photovoltaic and wind energy, aerospace, automotive and industrial applications. Kaptonsupreg;/sup Tapes have a high dielectric strength. Silicon adhesive protection leaves no residue. Total thickness: Approx. 2.7 mil (1.2 mil film and 1.5 mil adhesive)br strongCustom sizes are available upon request.strong

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

Technical Specifications

PropertySpecification
County of Packaging
Packaged in USA
Color
Amber
Material Type
1 mil thick Kapton film with Silicone adhesive
Thickness
2.5 Mil
Peel Strength
21 +7/-3.5 oz./in.
Tensile Strength
26 lbs./in.², 26 lbs./in.²
Elongation
0.6
Dielectric Strength
>6,500 Volts
UNSPSC
31201503

Documents & Media

Product Description

1 mil Kaptonsupreg;/sup Tapes are made from Kaptonsupreg;/sup HN film with silicone adhesive. They have been used in applications at temperatures as low as -269 degrees C (-452 degrees F) and as high as 260 degrees C (500 degrees F). DuPontsuptrade;/sup Kaptonsupreg;/sup polyimide films have set the industry standard for over 45 years in high performance, reliability and durability, with a unique combination of electrical, thermal, chemical and mechanical properties that withstand extreme temperature, vibration and other demanding environments. Kaptonsupreg;/sup polyimide films make innovative design solutions possible in a range of industries including, consumer electronics, solar photovoltaic and wind energy, aerospace, automotive and industrial applications. Kaptonsupreg;/sup Tapes have a high dielectric strength. Silicon adhesive protection leaves no residue. Total thickness: Approx. 2.7 mil (1.2 mil film and 1.5 mil adhesive)br strongCustom sizes are available upon request.strong
