ESNA

79NC2-02

Reference # : 22079NC2-02

Product Description

0.1900-32UNJC-3B Nut - Clinch, Corrosion Resistant Steel (CRES) - AISI 303 - NC Series

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

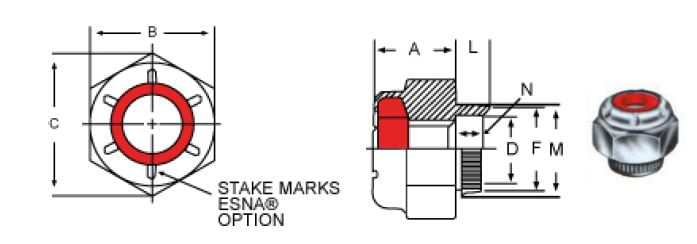

Technical Specifications

PropertySpecification
Finish
Plain
Locking Insert
Red Nylon (350?F Max Performance)
Material
Stainless Steel
Overall Height (inch)
0.25
Performance
NASM25027 as Applicable
Series
NC
Shank Height (inch)
0.085
Shank Inside Diameter (inch)
0.22
Shank Knurl Height (inch)
0.08
Shank Outside Diameter (inch)
0.267-0.275
Thread Notes
AS8879
Thread Size
0.1900-32UNJC-3B
Thread Type
UNJC
Weight (lbs/100)
0.54
Width Across Corners (inch)
0.413
Width Across Flats (inch)
0.375
Material Rating
AISI 303

Documents & Media

Product Description

0.1900-32UNJC-3B Nut - Clinch, Corrosion Resistant Steel (CRES) - AISI 303 - NC Series
