ESNA

79NCFMA2-82

Reference # : 22079NCFMA2-82

Product Description

0.1640-32UNJC-3B Nut - Clinch, Flush Mounting, Miniature, Nylon Insert, 350 ?F, Corrosion Resistant Steel (CRES) - AISI 303 or Equivalent - NCFMA Series

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

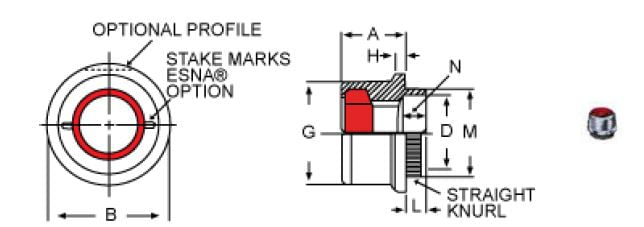

Technical Specifications

PropertySpecification
Finish
Plain
Flange Diameter (inch)
0.312
Flange Height (inch)
0.25
Flush Punch Part No.
CPMF2
Internal Punch Part No.
CPM8
Locking Insert
Red Nylon (350?F Max Performance)
Material
Stainless Steel
Maximum Installation Hole Diameter (inch)
0.22
Maximum Recommended Clinch Pressure (lbs)
1000
Minimum Installation Hole Diameter (inch)
0.218
Outside Diameter (inch)
0.268
Overall Height (inch)
0.16
Performance
Torque per NASM25027, SIZES ?82 and Larger
Series
NCFMA
Shank Height (inch)
0.06
Shank Inside Diameter (inch)
0.18
Shank Knurl Height (inch)
0.06
Shank Outside Diameter (inch)
0.223
Thread Notes
AS8879
Thread Size
0.1640-32UNJC-3B
Thread Type
UNJC
Weight (lbs/100)
0.17
Material Rating
AISI 303 or Equivalent
Dolly Tool Part No.
CDMA81

Documents & Media

Product Description

0.1640-32UNJC-3B Nut - Clinch, Flush Mounting, Miniature, Nylon Insert, 350 ?F, Corrosion Resistant Steel (CRES) - AISI 303 or Equivalent - NCFMA Series
