ESNA

79NKCFM2-62

Reference # : 22079NKCFM2-62

Product Description

0.1380-32UNJC-3B Nut - Clinch, Flush Mounting, Miniature, Nylon Cap, 350?F, Corrosion Resistant Steel (CRES) - AISI 303 or Equivalent - NKCFM Series

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

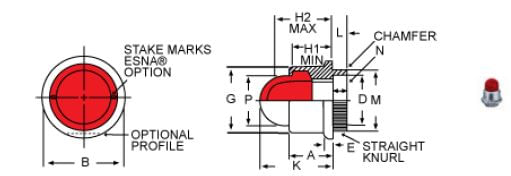

Technical Specifications

PropertySpecification
Cap Width (inch)
0.17
Finish
Plain
Flange Diameter (inch)
0.281
Flange Height (inch)
0.025
Hex Height (inch)
0.13
Locking Insert
Red Nylon ? Heat Stabilized (Suitable for Temperatures up to 350?F)
Material
Stainless Steel
Maximum Drill Depth (inch)
0.211
Outside Diameter (inch)
0.242
Overall Height (inch)
0.251
Series
NKCFM
Shank Height (inch)
0.06
Shank Inside Diameter (inch)
0.154
Shank Knurl Height (inch)
0.06
Shank Outside Diameter (inch)
0.192
Thread Notes
AS8879
Thread Size
0.1380-32UNJC-3B
Thread Type
UNJC
Weight (lbs/100)
0.12
Material Rating
AISI 303 or Equivalent
