ESNA

F12NCFMA2-62

Reference # : 220F12NCFMA2-62

Product Description

0.1380-32UNJC-3B Nut - Clinch, Flush Mounting, Miniature, Nylon Insert, 350 ?F, Steel, Post Plate Treatment- Cadmium Plate, per SAE AMS-QQ-P-416, Type II - NCFMA Series

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

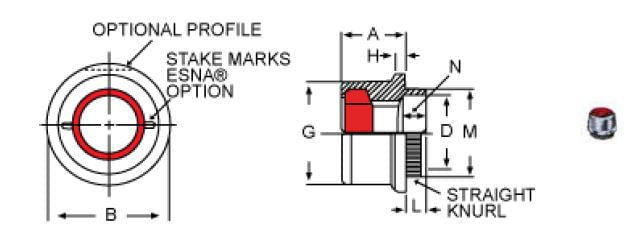

Technical Specifications

PropertySpecification
Finish
Cadmium
Finish Classification
Post Plate Treatment- Cadmium Plate, per SAE AMS-QQ-P-416, Type II
Flange Diameter (inch)
0.281
Flange Height (inch)
0.25
Locking Insert
Red Nylon (350?F Max Performance)
Material
Steel
Maximum Installation Hole Diameter (inch)
0.189
Minimum Installation Hole Diameter (inch)
0.187
Outside Diameter (inch)
0.242
Overall Height (inch)
0.13
Performance
Torque per NASM25027, SIZES ?82 and Larger
Series
NCFMA
Shank Height (inch)
0.06
Shank Inside Diameter (inch)
0.154
Shank Knurl Height (inch)
0.06
Shank Outside Diameter (inch)
0.192
Thread Notes
AS8879
Thread Size
0.1380-32UNJC-3B
Thread Type
UNJC

Documents & Media

Product Description

0.1380-32UNJC-3B Nut - Clinch, Flush Mounting, Miniature, Nylon Insert, 350 ?F, Steel, Post Plate Treatment- Cadmium Plate, per SAE AMS-QQ-P-416, Type II - NCFMA Series
