Essentra Components

RSDC-550

Reference # : 520RSDC-550

Product Description

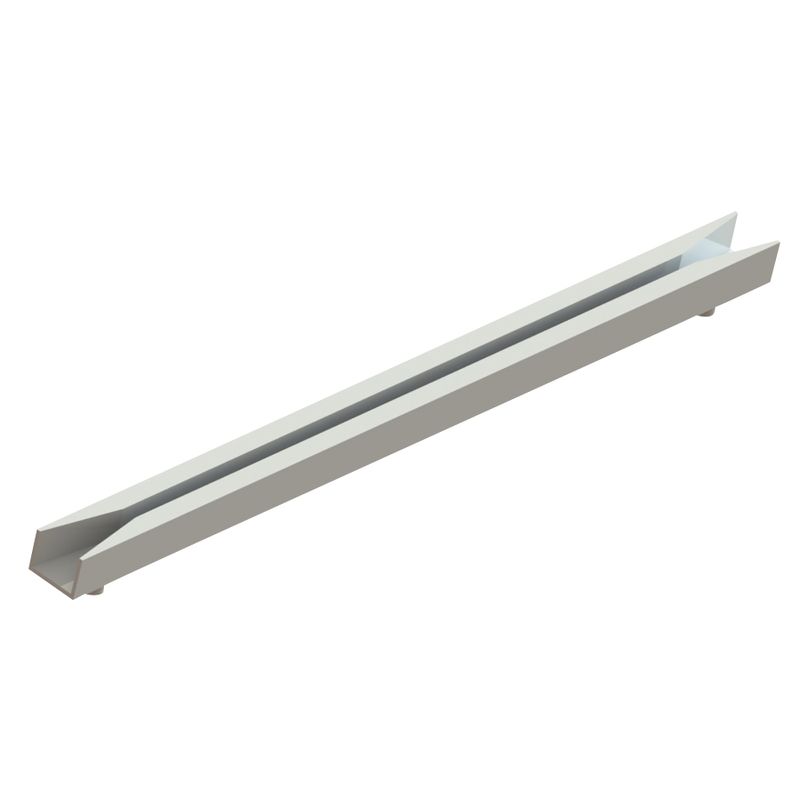

Card Guide,Snap In,Natural,5-1/2"Lg

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.


Quantity

Technical Specifications

PropertySpecification
Accepts Panel Thickness
.062 (1.6 ), .062 in (1.6 mm)
Distance Between Fixing Holes
4.5 (114.3 ), 4.5 in (114.3 mm)
Material Flammability Standard
UL94 V-2
Maximum Operating Temperature (Fahrenheit) (Celsius)
194 °F (90 °C), 194 °F (90 °C)
Maximum Panel Thickness
.090 (2.3 ), .090 in (2.3 mm)
Minimum Operating Temperature
-40 °F (-40 °C), -40 °F (-40 °C)
Minimum Panel Thickness
.047 (1.2 ), .047 in (1.2 mm)
Operating Temperature Range (Fahrenheit) (Celsius)
-40 - 194 °F (-40 - 90 °C), -40 - 194 °F (-40 - 90 °C)
Overall Width (inch) (millimeter)
5.500 (139.7 ), 5.500 in (139.7 mm)

Documents & Media

Product Description

Card Guide,Snap In,Natural,5-1/2"Lg
