Essentra Components

BSI047A

Reference # : 520BSI047A

Product Description

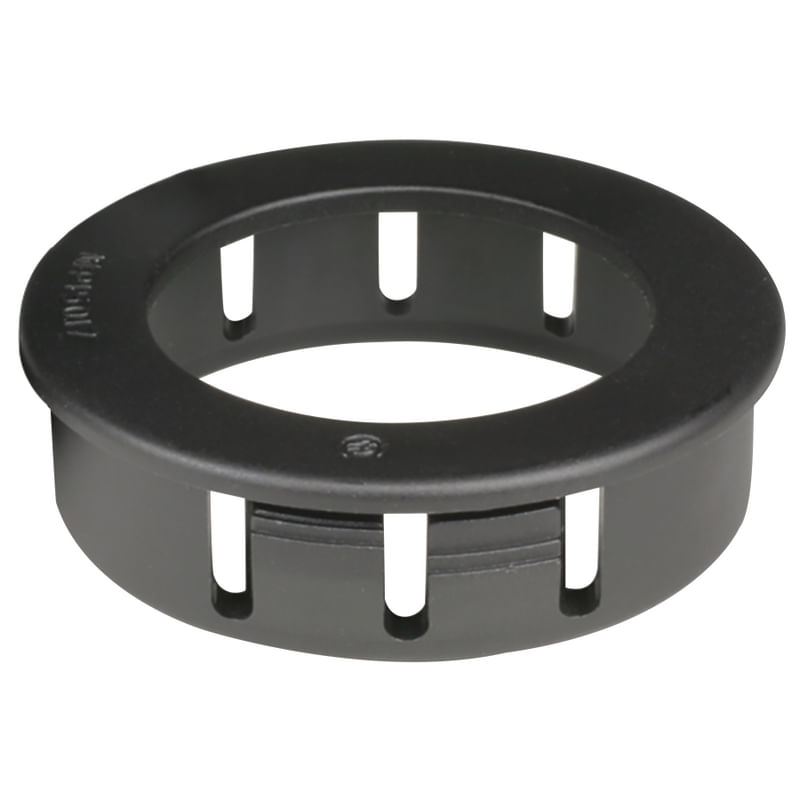

STD INSULATED BUSHING:NYL BLACK

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

This product isn't available right now
I want to know when this product becomes available

Technical Specifications

PropertySpecification
Approximate Cable Holding Diameter
2.470 in
Material
Nylon 6/6
Material Flammability Standard
UL94 V-2
Maximum Panel Thickness
.250 in
Minimum Panel Thickness
.250 in
Unit Weight (lbs)
24.912
Package Quantity
350
Compatible Hole Diameter
3.000 in
Head Diameter (in)
3.160 in
Inside Diameter
2.470 in
Maximum Operating Temperature
185 °F
Minimum Operating Temperature
-40 °F
Overall Height (in)
.720 in
Color
Black
Special Features
Heat-Stabilized

Documents & Media

Product Description

STD INSULATED BUSHING:NYL BLACK
