Essentra Components

CG-M12-1-BK

Reference # : 520CG-M12-1-BK

Product Description

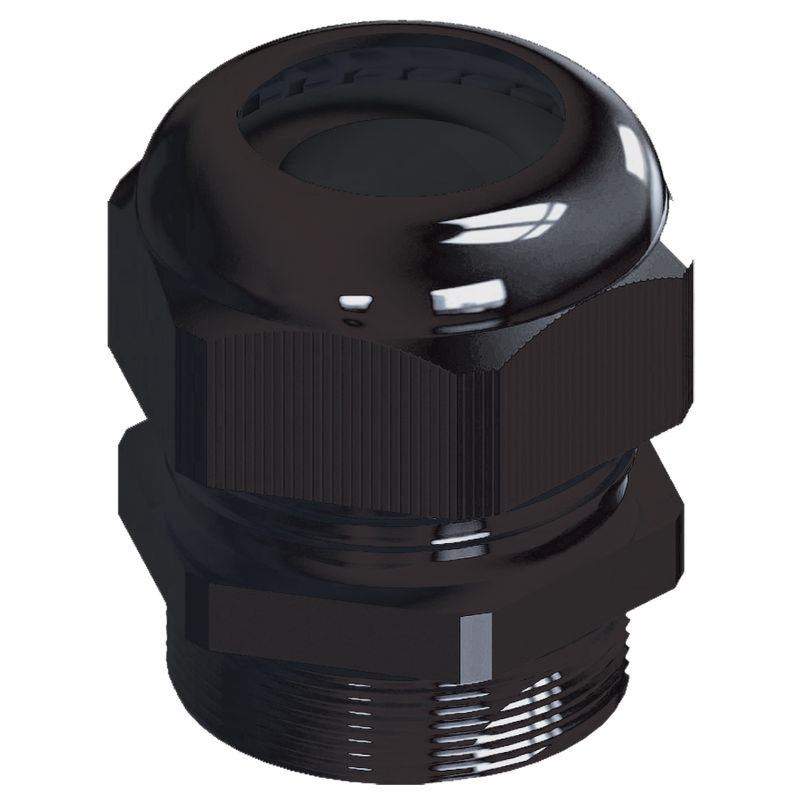

Cable Gland,M12,Black

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

Technical Specifications

PropertySpecification
Certification
UL
Compatible Cable Diameter Range
2.0 - 5.0 mm (0.079 - 0.197 in)
Compatible Hole Diameter
12.2 mm (0.48 in)
Material Flammability Standard
UL94 V-2
Maximum Compatible Cable Diameter
5.0 mm (0.197 in)
Mounting Thread Length
8.0 mm (0.315 in)
Overall Length
31.0 mm (1.22 in)
Specifications/Standards
UL/CSA IP68 - 5 Bar
UL/CSA Description
UL E336396
Width Across Flats
15.0 mm (0.591 in)
Minimum Compatible Cable Diameter
2.0 mm (0.079 in)

Documents & Media

Product Description

Cable Gland,M12,Black
