Essentra Components

VMCG-90-MPBK-K

Reference # : 520VMCG-90-MPBK-K

Product Description

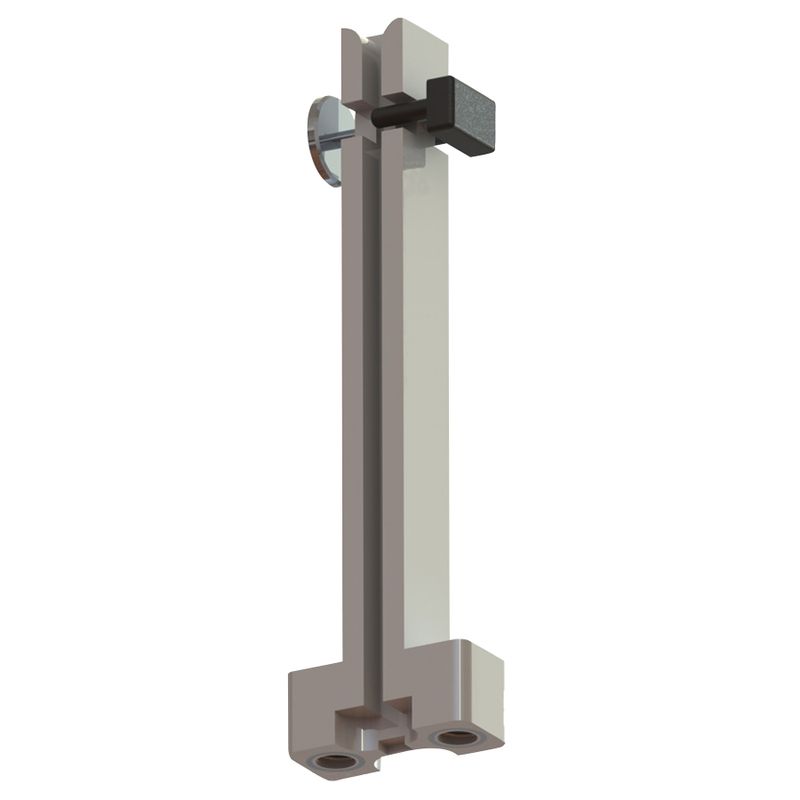

Card Guide,Vert Mnt,Grey,90MM Hgt

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

Technical Specifications

PropertySpecification
Accepts Panel Thickness
1.6 (0.063 ), 1.6 mm (0.063 in)
Base Width to Hole Center (inch) (millimeter)
3.0 (0.118 ), 3.0 mm (0.118 in)
Compatible Thread Sizes
M3
Height (inch) (millimeter)
90.0 (3.543 ), 90.0 mm (3.543 in)
Hole Diameter (inch) (millimeter)
2.0 (0.079 ), 2.0 mm (0.079 in)
Hole Spacing Length (inch) (millimeter)
81.5 (3.209 ), 81.5 mm (3.209 in)
Maximum Operating Temperature (Fahrenheit) (Celsius)
543 °F (283.9 °C), 543 °F (283.9 °C)
Minimum Operating Temperature
-4 °F (-20 °C), -4 °F (-20 °C)
Operating Temperature Range (Fahrenheit) (Celsius)
-4 - 543 °F (-20 - 283.9 °C), -4 - 543 °F (-20 - 283.9 °C)
Overall Height (inch) (millimeter)
90.0 (3.543 ), 90.0 mm (3.543 in)
Overall Width (inch) (millimeter)
18.0 (0.709 ), 18.0 mm (0.709 in)

Documents & Media

Product Description

Card Guide,Vert Mnt,Grey,90MM Hgt
