Molex

120065-1131

Reference # : 390120065-1131

Product Description

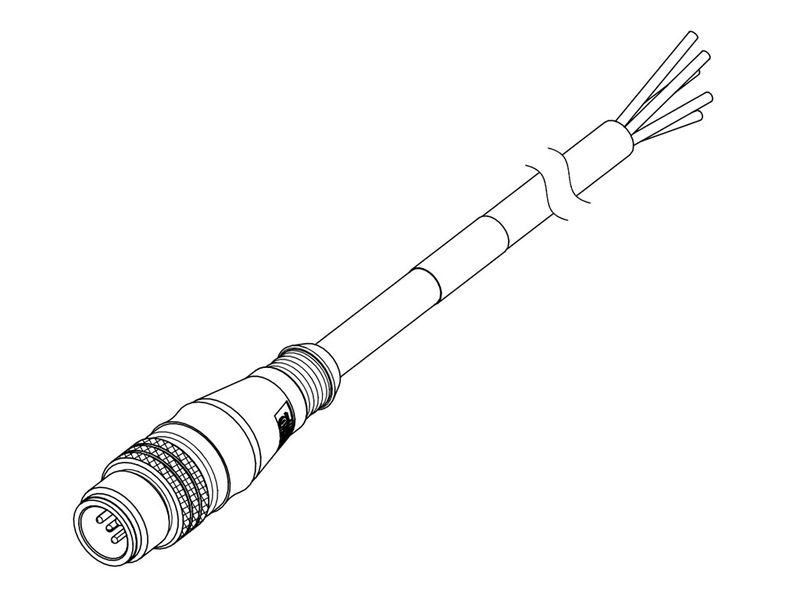

Molex-120065-1131 Cordsets

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

This product isn't available right now
I want to know when this product becomes available

Technical Specifications

PropertySpecification
Cable Diameter
5.30mm (.209")
Cable Length
5.0m (16.40')
Color - Cable Jacket
Yellow
Connector End A
Micro-Change (M12)
Connector End B
Pigtail
Current - Maximum per Contact
4.0A
Gender
Male-Pigtail
IP Rating
IP67
Keyway
Single
Material - Cable Jacket
TPE
Material - Contact
Copper Alloy
Material - Plating Mating
Gold over Nickel
Orientation
Straight to Pigtail
Poles
4
Product Name
Micro-Change (M12)
Region
America
Type
Single Ended
Voltage - Maximum
250V AC/DC
Wire/Cable Type
PLTC-ER

Documents & Media

Product Description

Molex-120065-1131 Cordsets
