Molex

173359-0002

Reference # : 390173359-0002

Product Description

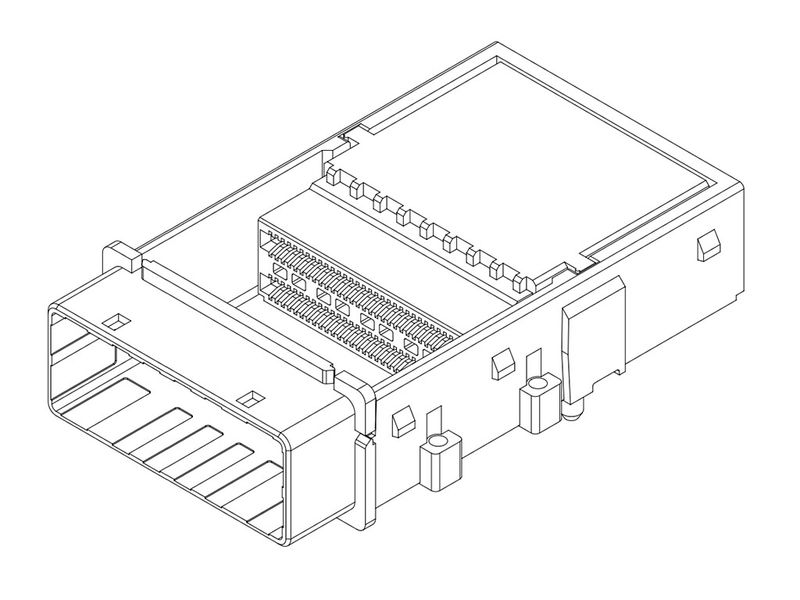

Molex-173359-0002 I/O Connectors

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

This product isn't available right now
I want to know when this product becomes available

Technical Specifications

PropertySpecification
Application
Wire-to-Board
Circuits (Loaded)
120
Color - Resin
Black
Component Type
Receptacle
Current - Maximum per Contact
1.0A
Durability (mating cycles max)
50
Gender
Female
Material - Plating Mating
Gold over Nickel
Material - Resin
High Temperature Thermoplastic
No. of Rows
4
Orientation
Right Angle
Packaging Type
Tray
Panel Mount
Yes
Pitch - Mating Interface
0.75mm
Plating min - Mating
0.762µm
Product Name
zCD
Shielded
No
Voltage - Maximum
30V AC (RMS)/DC
Ports
1

Documents & Media

Product Description

Molex-173359-0002 I/O Connectors
