Molex

39-28-1083

Reference # : 39039-28-1083

Product Description

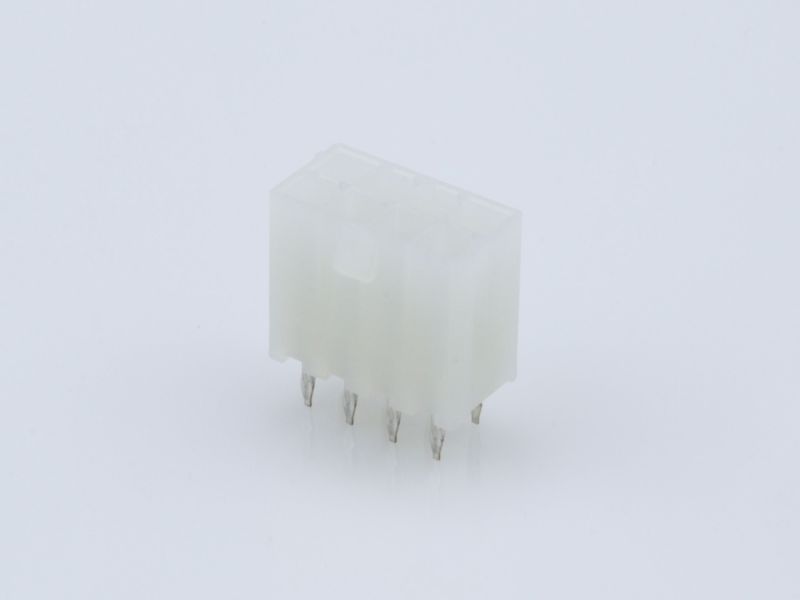

Molex-39-28-1083 PCB Headers

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

Technical Specifications

PropertySpecification
Circuits (maximum)
8
Color - Resin
Natural
Current - Maximum per Contact
9.0A
Flammability
94V-2
Glow-Wire Capable
No
Guide to Mating Part
No
Material - Plating Mating
Tin
No. of Rows
2
Orientation
Vertical
Packaging Type
Bag
Pitch - Mating Interface
4.20mm
Pitch - Termination Interface
4.20mm
Plating min - Mating
0.889µm
Product Name
Mini-Fit Jr.
Product Series
5566
Product Status
Active
Voltage - Maximum
600V
Durability (mating cycles max)
30
PC Tail Length
3.50mm

Documents & Media

Product Description

Molex-39-28-1083 PCB Headers
