Molex

53460-0639

Reference # : 39053460-0639

Product Description

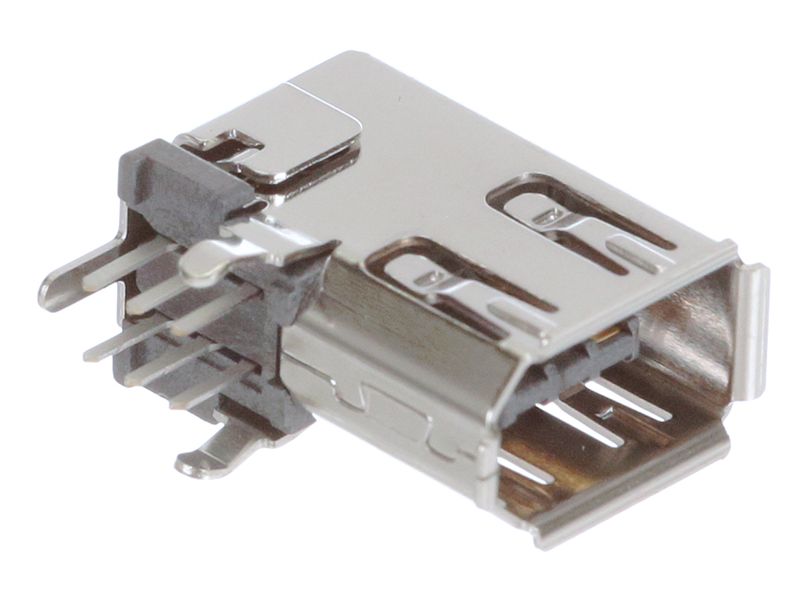

Molex-53460-0639 I/O Connectors

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

This product isn't available right now
I want to know when this product becomes available

Technical Specifications

PropertySpecification
Application
Wire-to-Board
Circuits (Loaded)
6
Circuits (maximum)
6
Color - Resin
Black
Component Type
Receptacle
Current - Maximum per Contact
1.5A
Gender
Female
Material - Plating Mating
Gold
Material - Resin
High Temperature Thermoplastic
No. of Rows
2
Orientation
Right Angle
Packaging Type
Tray
Panel Mount
No
Pitch - Mating Interface
2.00mm
Pitch - Termination Interface
2.00mm
Plating min - Mating
0.762µm
Product Name
IEEE 1394
Shielded
Yes
Voltage - Maximum
125V AC (RMS)/DC
PC Tail Length
3.00mm
Ports
1
