Molex

67068-8000

Reference # : 39067068-8000

Product Description

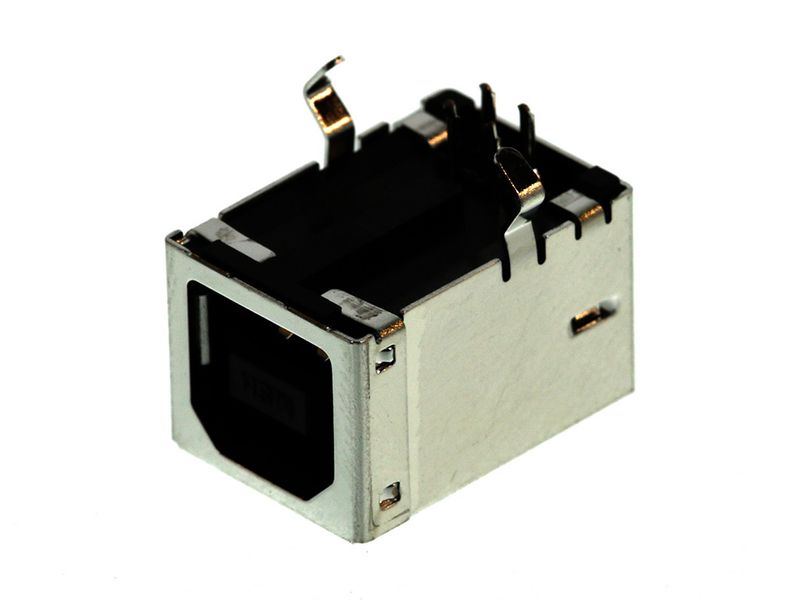

Molex-67068-8000 I/O Connectors

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

Technical Specifications

PropertySpecification
Application
Wire-to-Board
Circuits (Loaded)
4
Circuits (maximum)
4
Color - Resin
Black
Component Type
Receptacle
Current - Maximum per Contact
1.5A
Gender
Female
Material - Plating Mating
Gold
Material - Resin
High Temperature Thermoplastic
No. of Rows
2
Orientation
Right Angle
Packaging Type
Tray
Panel Mount
No
Pitch - Mating Interface
2.50mm
Pitch - Termination Interface
2.50mm
Plating min - Mating
0.051µm
Product Name
USB 2.0
Shielded
Yes
Voltage - Maximum
30V (RMS)
PC Tail Length
2.80mm
Ports
1
Type
B

Documents & Media

Product Description

Molex-67068-8000 I/O Connectors
