Molex

87832-1020

Reference # : 39087832-1020

Product Description

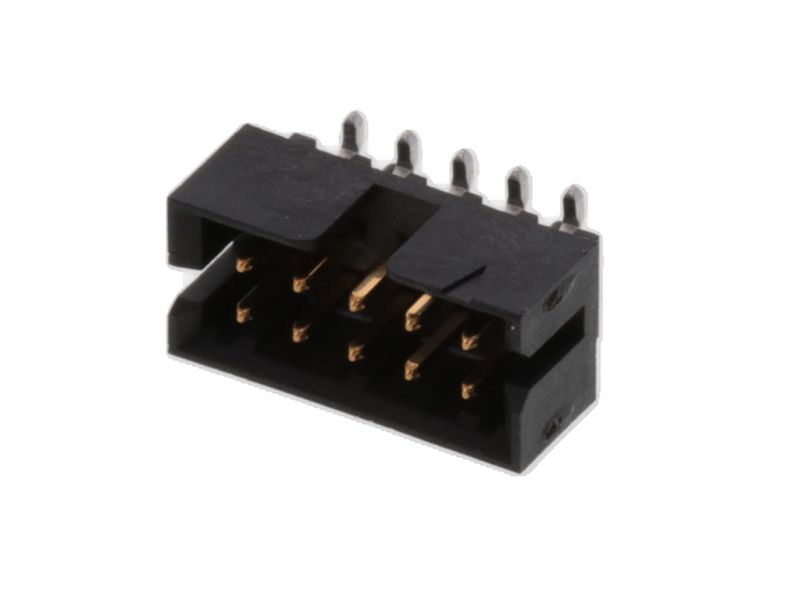

Molex-87832-1020 PCB Headers

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate
Quantity

Technical Specifications

PropertySpecification
Application
Signal
Breakaway
No
Circuits (Loaded)
10
Circuits (maximum)
10
Color - Resin
Black
Current - Maximum per Contact
2.0A
Flammability
94V-0
Glow-Wire Capable
No
Guide to Mating Part
No
Material - Plating Mating
Gold
No. of Rows
2
Orientation
Vertical
Packaging Type
Tube
Pitch - Mating Interface
2.00mm
Pitch - Termination Interface
2.00mm
Plating min - Mating
0.381µm
Product Name
Milli-Grid
Product Series
87832
Product Status
Active
Voltage - Maximum
125V
Durability (mating cycles max)
100

Documents & Media

Product Description

Molex-87832-1020 PCB Headers
