ESNA

F92-1660-40

Reference # : 220F92-1660-40

Product Description

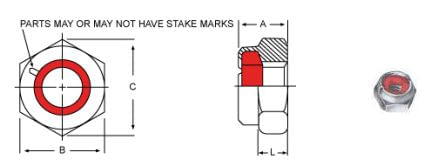

0.1120-40UNJC-3B Nut - Hex, Miniature, Brass - Commercial Half Hard or Equivalent, Post-Plate, Cadmium Plate, SAE-AMS-QQ-P416 Type II, Class 2 - 1660 Series

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

Technical Specifications

PropertySpecification
Finish
Cadmium
Finish Classification
Post-Plate, Cadmium Plate, SAE-AMS-QQ-P416 Type II, Class 2
Hex Height (inch)
0.07
Locking Insert
Red Nylon (350?F Max Performance)
Material
Brass
Material Rating
Commercial Half Hard or Equivalent
Overall Height (inch)
0.11
Series
1660
Thread Notes
MIL-S-7742 or AS8879
Thread Size
0.1120-40UNJC-3B
Thread Type
UNJC
Width Across Corners (inch)
0.207
Width Across Flats (inch)
0.181-0.189

Documents & Media

Product Description

0.1120-40UNJC-3B Nut - Hex, Miniature, Brass - Commercial Half Hard or Equivalent, Post-Plate, Cadmium Plate, SAE-AMS-QQ-P416 Type II, Class 2 - 1660 Series
