Essentra Components

SR-2648B

Reference # : 520SR-2648B

Product Description

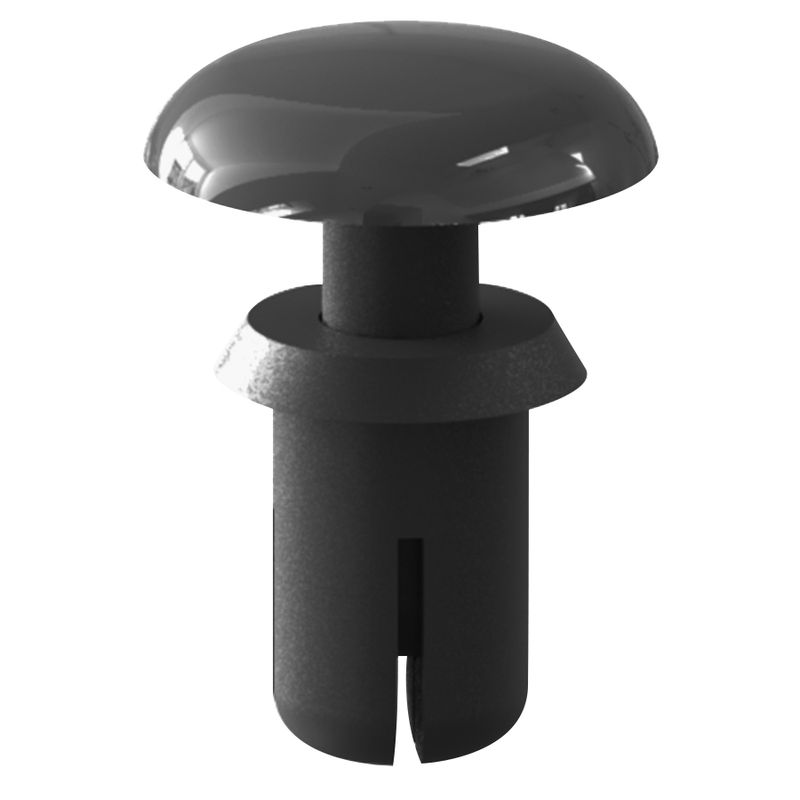

Snap Rivet,Black,.106"-.142" Hold

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.


This product isn't available right now
I want to know when this product becomes available

Technical Specifications

PropertySpecification
Anchor Length
.189 (4.8 ), .189 in (4.8 mm)
Compatible Hole Diameter Range
.106 - .110 (2.7 - 2.8 ), .106 - .110 in (2.7 - 2.8 mm)
Compatible Panel Thickness (inch) (millimeter)
.134 - .142 (3.4 - 3.6 ), .134 - .142 in (3.4 - 3.6 mm)
Head Diameter (inch) (millimeter)
.197 (5 ), .197 in (5 mm)
Head Height (inch) (millimeter)
.055 (1.4 ), .055 in (1.4 mm)
Material Flammability Standard
UL94 V-2
Maximum Compatible Hole Diameter (inch) (millimeter)
.110 (2.8 ), .110 in (2.8 mm)
Maximum Compatible Panel Thickness (inch) (millimeter)
.142 (3.6 ), .142 in (3.6 mm)
Maximum Operating Temperature (Fahrenheit) (Celsius)
239 °F (115 °C)
Minimum Compatible Hole Diameter
.106 (2.7 ), .106 in (2.7 mm)
Minimum Operating Temperature
-40 °F (-40 °C)
Minimum Panel Thickness
.134 (3.4 ), .134 in (3.4 mm)
Operating Temperature Range (Fahrenheit) (Celsius)
-40 - 239 °F (-40 - 115 °C), -40 - 239 °F (-40 - 115 °C)
