Essentra Components

BR1-344-01

Reference # : 520BR1-344-01

Product Description

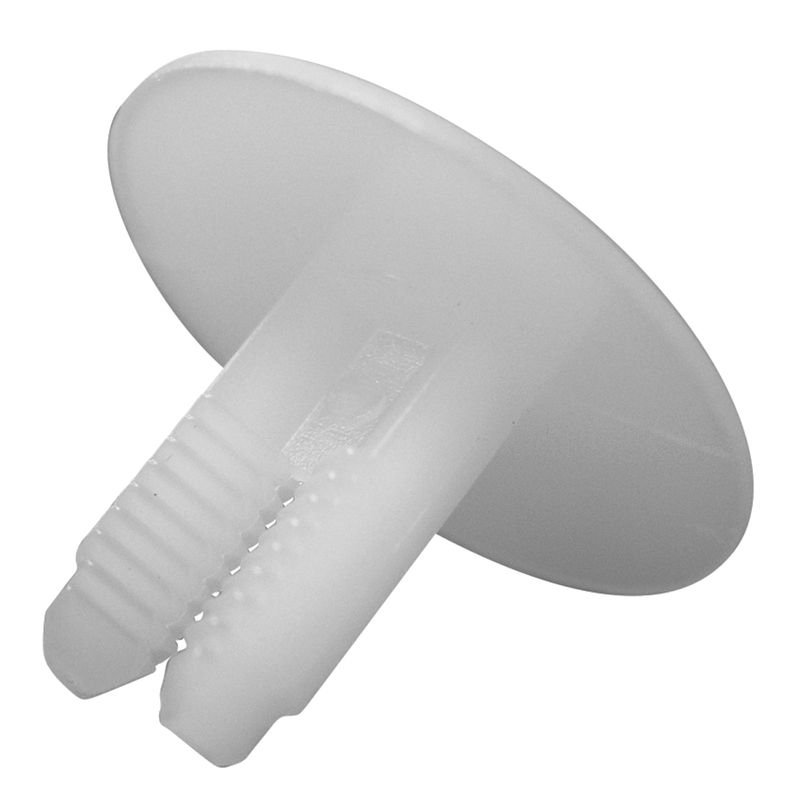

Rivet,Barbed,Natural,.346-.502" Hld

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

Technical Specifications

PropertySpecification
Anchor Length
.343 (8.7 ), .343 in (8.7 mm)
Compatible Hole Diameter Range
.281 (7.1 ), .281 in (7.1 mm)
Head Diameter (inch) (millimeter)
.406 (10.3 ), .406 in (10.3 mm)
Head Height (inch) (millimeter)
.093 (2.4 ), .093 in (2.4 mm)
Material Flammability Standard
UL94 V-2
Maximum Compatible Hole Diameter (inch) (millimeter)
.281 (7.1 ), .281 in (7.1 mm)
Maximum Grip
.500 (12.7 ), .500 in (12.7 mm)
Maximum Operating Temperature (Fahrenheit) (Celsius)
185 °F (85 °C), 185 °F (85 °C)
Minimum Grip
.346 (8.8 ), .346 in (8.8 mm)
Minimum Operating Temperature
-40 °F (-40 °C), -40 °F (-40 °C)
Operating Temperature Range (Fahrenheit) (Celsius)
-40 - 185 °F (-40 - 85 °C), -40 - 185 °F (-40 - 85 °C)

Documents & Media

Product Description

Rivet,Barbed,Natural,.346-.502" Hld
