Essentra Components

SR-2064B

Reference # : 520SR-2064B

Product Description

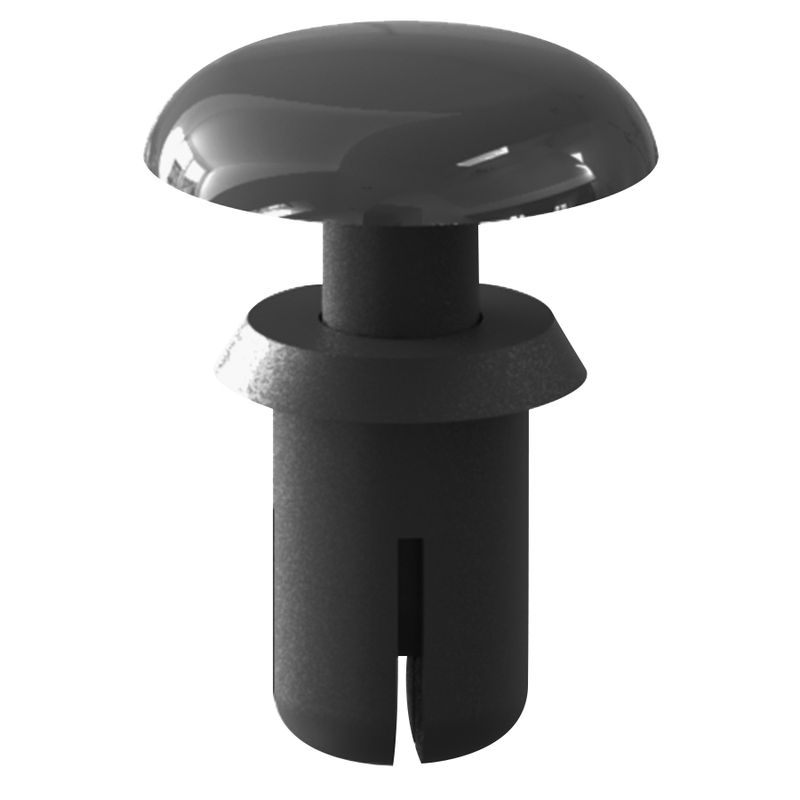

Snap Rivet,Black,.173"-.197" Hold

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

Technical Specifications

PropertySpecification
Anchor Length
.252 (6.4 ), .252 in (6.4 mm)
Compatible Hole Diameter Range
.083 - .087 (2.1 - 2.2 ), .083 - .087 in (2.1 - 2.2 mm)
Compatible Panel Thickness (inch) (millimeter)
.039 - .197 (1 - 5 ), .039 - .197 in (1 - 5 mm)
Head Diameter
.165 (4.2 ), .165 in (4.2 mm)
Head Height (inch) (millimeter)
.047 (1.2 ), .047 in (1.2 mm)
Material Flammability Standard
UL94 V-2
Maximum Compatible Hole Diameter
.087 (2.2 ), .087 in (2.2 mm)
Maximum Compatible Panel Thickness
.197 (5 ), .197 in (5 mm)
Maximum Operating Temperature
239 °F (115 °C)
Minimum Compatible Hole Diameter
.083 (2.1 ), .083 in (2.1 mm)
Minimum Operating Temperature
-40 °F (-40 °C)
Minimum Panel Thickness
.039 (1 ), .039 in (1 mm)
Operating Temperature Range (Fahrenheit) (Celsius)
-40 - 239 °F (-40 - 115 °C), -40 - 239 °F (-40 - 115 °C)

Documents & Media

Product Description

Snap Rivet,Black,.173"-.197" Hold
