Essentra Components

SR-3550B

Reference # : 520SR-3550B

Product Description

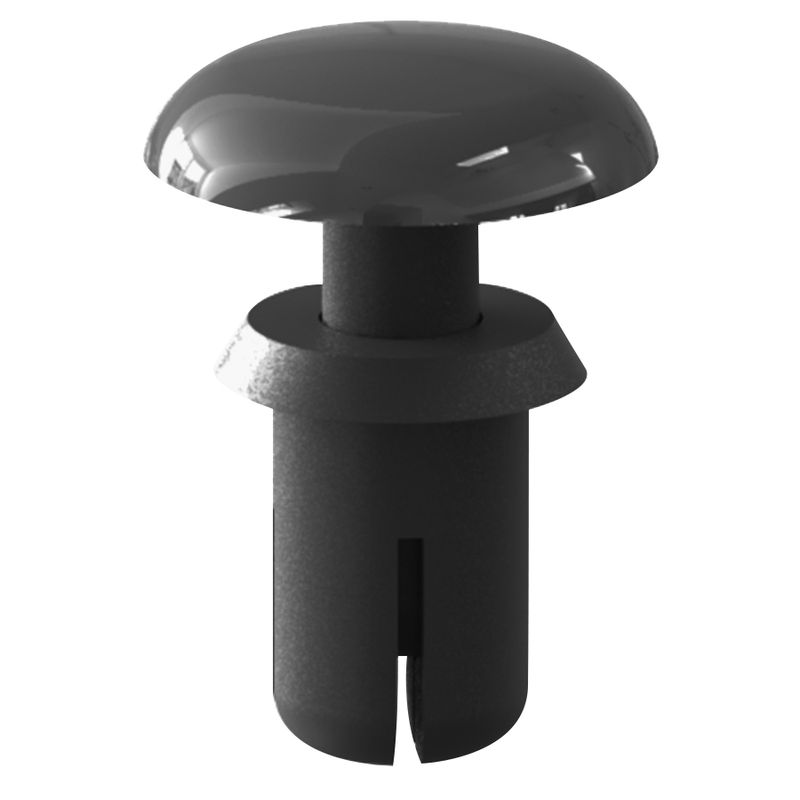

Snap Rivet,Black,.118"-.158" Hold

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

Technical Specifications

PropertySpecification
Anchor Length
.197 (5 ), .197 in (5 mm)
Compatible Hole Diameter Range
.142 - .146 (3.6 - 3.7 ), .142 - .146 in (3.6 - 3.7 mm)
Compatible Panel Thickness (inch) (millimeter)
.118 - .142 (3 - 3.6 ), .118 - .142 in (3 - 3.6 mm)
Head Diameter
.252 (6.4 ), .252 in (6.4 mm)
Head Height (inch) (millimeter)
.063 (1.6 ), .063 in (1.6 mm)
Material Flammability Standard
UL94 V-2
Maximum Compatible Hole Diameter
.146 (3.7 ), .146 in (3.7 mm)
Maximum Compatible Panel Thickness
.142 (3.6 ), .142 in (3.6 mm)
Maximum Operating Temperature
239 °F (115 °C)
Minimum Compatible Hole Diameter
.142 (3.6 ), .142 in (3.6 mm)
Minimum Operating Temperature
-40 °F (-40 °C)
Minimum Panel Thickness
.118 (3 ), .118 in (3 mm)
Operating Temperature Range (Fahrenheit) (Celsius)
-40 - 239 °F (-40 - 115 °C), -40 - 239 °F (-40 - 115 °C)

Documents & Media

Product Description

Snap Rivet,Black,.118"-.158" Hold
