Essentra Components

SRHR-3045

Reference # : 520SRHR-3045

Product Description

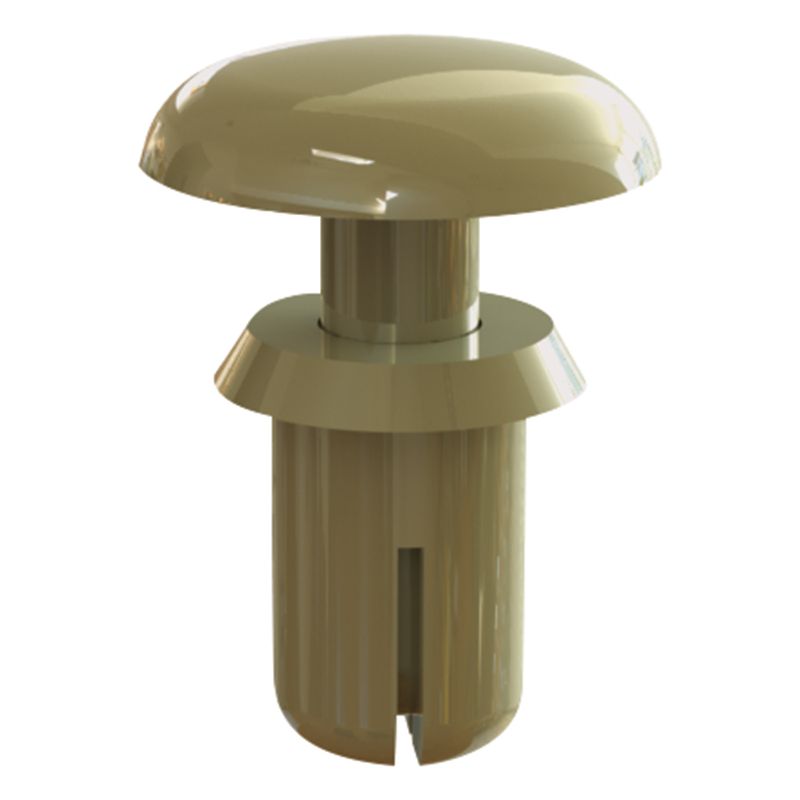

Snap Rvt,Hg Tmp,Tan,.079"-.118" Hld

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Get Shipping Estimate

Quantity

Technical Specifications

PropertySpecification
Anchor Length
.177 (4.5 ), .177 in (4.5 mm)
Compatible Hole Diameter Range
.122 - .126 (3.1 - 3.2 ), .122 - .126 in (3.1 - 3.2 mm)
Compatible Panel Thickness (inch) (millimeter)
.118 (3 ), .118 in (3 mm)
Head Diameter
.252 (6.4 ), .252 in (6.4 mm)
Head Height (inch) (millimeter)
.063 (1.6 ), .063 in (1.6 mm)
Material Flammability Standard
UL94 V-2
Maximum Compatible Hole Diameter
.126 (3.2 ), .126 in (3.2 mm)
Maximum Compatible Panel Thickness
.118 (3 ), .118 in (3 mm)
Maximum Operating Temperature
239 °F (115 °C)
Minimum Compatible Hole Diameter
.122 (3.1 ), .122 in (3.1 mm)
Minimum Operating Temperature
-40 °F (-40 °C)
Minimum Panel Thickness
.118 (3 ), .118 in (3 mm)
Operating Temperature Range (Fahrenheit) (Celsius)
-40 - 239 °F (-40 - 115 °C), -40 - 239 °F (-40 - 115 °C)

Documents & Media

Product Description

Snap Rvt,Hg Tmp,Tan,.079"-.118" Hld
