Panduit

SE25PFR-TR0

Reference # : 444SE25PFR-TR0

Product Description

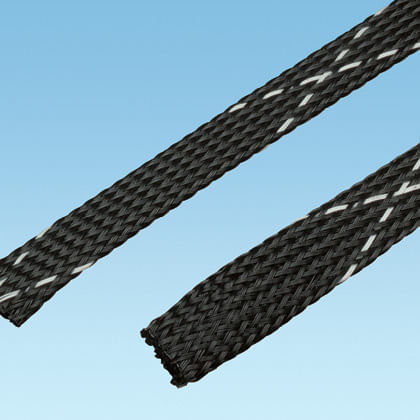

Braided Expandable Sleeving, 0.25" diameter (6.4mm), provides continuous abrasion resistance for wires, cables and tubing. The highly flexible open weave will not trap heat or humidity, black, Flame Retardant, Polyethylene Terephthalate, 200 ft. per reel.

Product certifications may be available for this product. Please email customerservice@biscoind.com to inquire about available certifications.

Quantity

Technical Specifications

PropertySpecification
Length (ft)
Flame Retardant Polyethylene Terephthalate
Nominal Size
Expandable
Type
Lightweight durable protection
UL Listed (US and Canada)
E116868
Nominal Diameter (in)
0.12 - 0.37
Nominal Diameter (mm)
3.2 - 9.5
ROHS Compliant
Yes
Operating Temperature
Yes
CSA Certified
-94°F - 257°F (-70°C - 125°C)
Temperature Range
Other
Flammability Rating
0.25
Nominal I.D. (in)
6.4
Part Features
6.4
Inside Diameter (mm)
1
Length Per Reel (ft)
200
Length Per Reel (m)
61

Documents & Media

Product Description

Braided Expandable Sleeving, 0.25" diameter (6.4mm), provides continuous abrasion resistance for wires, cables and tubing. The highly flexible open weave will not trap heat or humidity, black, Flame Retardant, Polyethylene Terephthalate, 200 ft. per reel.
